GPSMAP® 8612 12" Chartplotter with Mapping
12” Chartplotter with Full HD In-plane Switching (IPS) Touchscreen
- Features a 12” full HD IPS touchscreen display preloaded with both BlueChart® g3 U.S. coastal and LakeVü HD maps featuring Navionics® data and Auto Guidance¹ technology
- Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network
- Includes Bluetooth® connectivity, ANT® technology and Wi-Fi® networking
- Garmin SailAssist™ feature provides critical sailing data and displays prerace guidance for racers
- SmartMode™ station controls enable quick, one-touch access to the information you need
Serious cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8612 chartplotter delivers MFD performance in a combo-size package. It features a 12” full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush. It also provides standard USB touch output for use as a touchscreen monitor for Windows® and Mac® operating systems.
Build Your Marine System
NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — conveniently to your chartplotter screen.
The GPSMAP 8612 chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications¹, Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.
SmartMode Station Controls
Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.
The Best of Garmin with the Best of Navionics®
For the most detailed, clear and concise charts and maps, GPSMAP 8612 includes expandable memory for accessory map purchases such as BlueChart® g3 and BlueChart® g3 Vision featuring Navionics data. The charts and maps also include our Auto Guidance technology, which shows a suggested route to a destination², based on your boat’s specifications.
Sit Back and Take Control
You don’t have to stand for hours at the helm. The optional easy-to-use GRID™ 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions.
Special Sailing Features
To help you make informed decisions, the Garmin SailAssist feature provides critical data displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.
The Ultimate Connected Boating App
Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.
¹Auto Guidance is for planning purposes only and does not replace safe navigation operations
²When paired with a compatible smartphone
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Wi-Fi is a registered trademark of the Wi-Fi Alliance. Windows is a registered trademark of Microsoft Corporation. Mac is a trademark of Apple Inc., registered in the U.S. and other countries.
In The Box:
- GPSMAP 8612
- Power cable
- NMEA 2000® drop cable
- NMEA 2000 T-connector
- Bail mount with knobs
- Flush mount kit
- Sun cover
- Trim piece snap covers

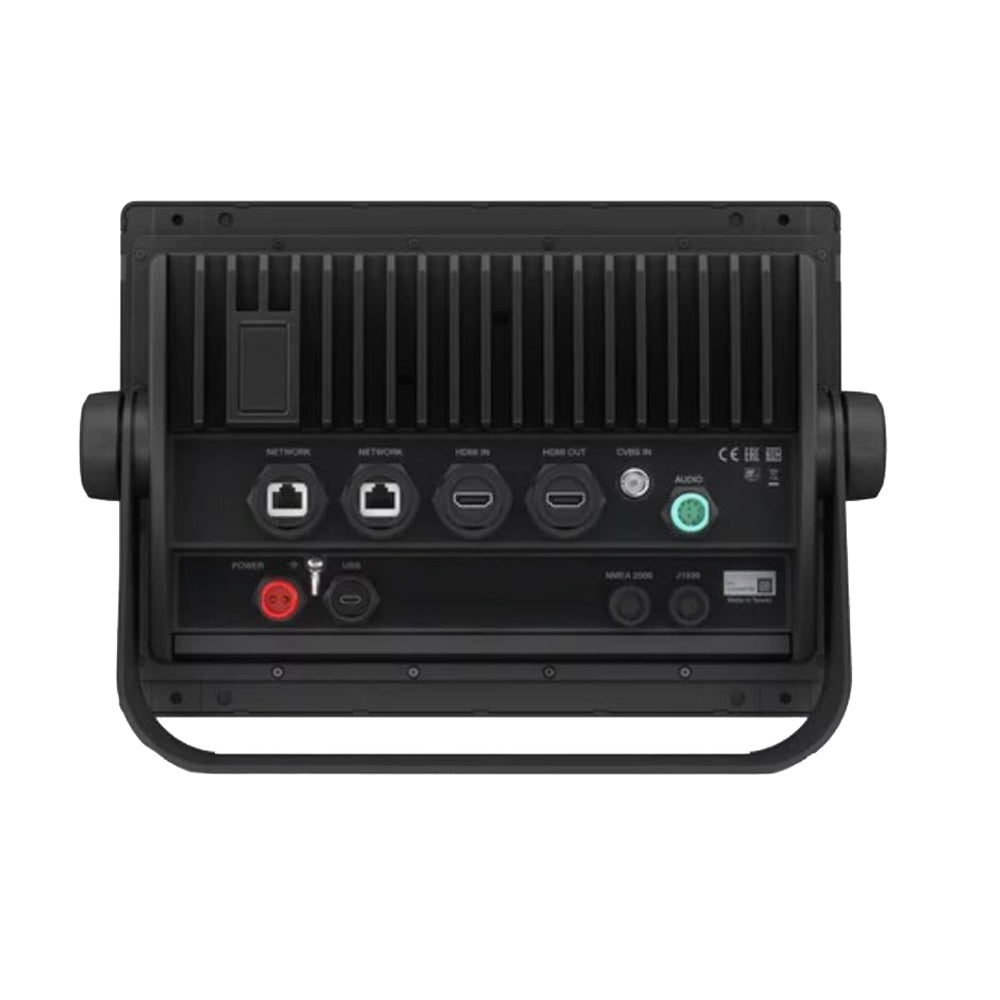

- Garmin Marine Network™ Ports: 2
- NMEA 2000® Port: 1
- NMEA 0183 Input Ports: 1 Differential
- NMEA 0183 Output Ports: 1 Differential
- Video Input Ports: 1 (BNC Composite) and 1 HDMI
- Video Output Ports: 1 HDMI
- Wireless Connectivity: yes (with GCV™ black box, sold separately)
